Fundamental characteristics and design method
for nickel-titanium shape memory alloy
1. History of Shape Memory Alloys
The first reported steps towards the discovery of the shape memory effect were taken in 1932 by A. Ölander [Gilbertson, 1994]. He discovered the pseudoelastic of the Au-Cd alloy. Greninger and Mooradian observed in 1938 the formation and disappearance of a martensitic phase by decreasing and increasing the temperature of a Cu-Zn alloy. The basic phenomenon of the memory effect governed by the thermoelastic behaviour of the martensite phase was widely reported a decade later by Kurdjumov and Khandros in 1949 and also by Chang and Read in 1951. In the early 1960s, Buehler and his co-workers at the U.S. Naval Ordnance Laboratory discovered the shape memory effect in an equiatomic alloy of nickel and titanium, which can be considered as a breakthrough in the field of shape memory materials [Buehler et al., 1967]. This alloy was named Nitinol (Nickel-Titanium Naval Ordnance Laboratory). Since that time, intensive investigations have been made to elucidate the mechanics of its basic behaviour.
2. General Principles
A NiTi shape memory metal alloy can exist in two different temperature-dependent crystal structures (phases) called martensite (lower temperature) and austenite (higher temperature or parent phase). Several properties of austenite NiTi and martensite NiTi are notably different.
When martensite NiTi is heated, it begins to change into austenite (Fig. 1). The temperature at which this phenomenon starts is called austenite start temperature (As). The temperature at which this phenomenon is completed is called austenite finish temperature (Af). When austenite NiTi is cooled, it begins to change into martensite. The temperature at which this phenomenon starts is called martensite start temperature (Ms). The temperature at which martensite is again completely reverted is called martensite finish temperature (Mf) [Buehler et al., 1967].
The composition and metallurgical treatments have dramatic impacts on the above transition temperatures. From the point of view of practical applications, NiTi can have three different forms: martensite, stress-induced martensite (superelastic), and austenite. When the material is in its martensite form, it is soft and ductile and can be easily deformed. Superelastic NiTi is highly elastic (rubber-like), while austenitic NiTi is quite strong and hard (similar to titanium) (Fig. 2). The NiTi material has all these properties, their specific expression depend on the temperature and stress in which it is used. Fig. 1 Md represents the highest temperature to strain-induced martensite and the grey area shows the area of optimal superelasticity.
2.1. Hysteresis
The temperature range for the martensite-to-austenite transformation, i.e. soft-to-hard transition that takes place upon heating is somewhat higher than that for the reverse transformation upon cooling (Fig. 1). The difference between the transition temperatures upon heating and cooling is called hysteresis. Hysteresis is generally defined as the difference between the temperatures at which the material is in 50 % transformed to austenite upon heating and in 50 % transformed to martensite upon cooling. This difference can be up to 20-30 °C [Buehler et al., 1967].
|
Fig. 1. Martensitic transformation and hysteresis |
Fig. 2. Stress-strain behaviour of different phases of NiTi at constant temperature. |
2.2. Thermoelastic Martensitic Transformation
The unique behaviour of NiTi is based on the temperature-dependent austenite-to-martensite phase transformation on an atomic scale, which is also called thermoelastic martensitic transformation. The thermoelastic martensitic transformation causing the shape recovery is a result of the need of the crystal lattice structure to accommodate to the minimum energy state of a given temperature [Otsuka et al., 1998].
In NiTi, the relative symmetries between the two phases lead to a highly ordered transformation, where the displacements of individual atoms can be accurately predicted and eventually lead to a shape change on a macroscopic scale. The crystal structure of martensite is relatively less symmetric compared to that of the parent phase. If a single crystal of the parent phase is cooled below Mf, then martensite variants with a total of 24 crystallographically equivalent habit planes are generally created. There is, however, only one possible parent phase (austenite) orientation, and all martensitic configurations revert to that single defined structure and shape upon heating above Af. The mechanism by which single martensite variants deform is called twinning, and it can be described as a mirror symmetry displacement of atoms across a particular atom plane, the twinning plane [Buehler et al., 1967].
While most metals can be deformed by slip or dislocation, NiTi responds to stress by simply changing the orientation of its crystal structure through the movement of twin boundaries.

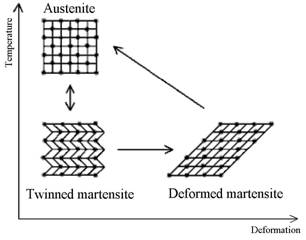

A NiTi specimen will deform until it consists only of the correspondent variant, which produces maximum strain. However, deformation beyond this will result in classical plastic deformation by slip, which is irretrievable and therefore has no “memory effect”. If the deformation is halted midway, the specimen will contain several different correspondence variants [Pritschow, 1998]. If such a specimen is heated above Af, a parent phase with an orientation identical to that existing prior to the deformation is created from the correspondence variants in accordance with the lattice correspondences between the original parent phase and each variant (Fig. 3). The austenite crystal structure is a simple cubic structure, while martensite has a more complex rhombic structure. This phenomenon causes the specimen to revert completely to the shape had before the deformation [Gill et al., 1998].
The above phenomenon is the basis of such special properties as the shape memory effect and superelasticity.
2.3. Shape Memory Effect
NiTi senses a change in ambient temperature and is able to convert its shape to a pre-programmed structure. While NiTi is soft and easily deformable in its lower temperature form (martensite), it resumes its original shape and rigidity when heated to its higher temperature form (austenite) (Fig. 3). This is called the one-way shape memory effect. The ability of shape memory alloys to recover a preset shape upon heating above the transformation temperatures and to return to a certain alternate shape upon cooling is known as the two-way shape memory effect. Two-way memory is exceptional. There is also an all-round shape memory effect, which is a special case of the two-way shape memory effect [Shimizu et al., 1987].
2.4. Superelasticity
Superelasticity (or pseudoelasticity) refers to the ability
of NiTi to return to its original shape
upon unloading after a
substantial deformation. This is based on stress-induced martensite
formation. The application of outer stress causes martensite
to form at temperatures higher than Ms. Macroscopic
deformation is
accommodated by the formation of martensite.
When the
stress is released, martensite transforms
back into
austenite and the specimen turns back to its original shape (Fig. 4). Superelastic NiTi
can be strained
several times more than ordinary metal alloys without being plastically
deformed, which reflects its rubber-like behaviour. It is, however,
only
observed over a specific temperature area. The highest temperature at
which martensite is no longer stress
induced is called Md. Above Md
NiTi alloy is deformed like ordinary
materials are by
slipping. Below As, the material
is martensitic and it does not recover.
Thus, superelasticity appears in a
temperature range from near Af
up to

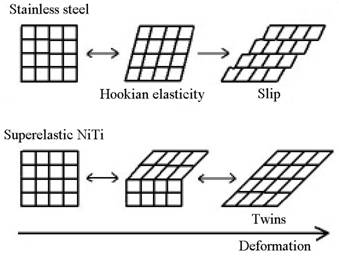

Fig. 4. Schematic presentation of lattice structure changes caused by outer stress
in stainless steel or superelastic NiTi alloy.
2.5. Limitations of Shape Memory and Superelastic Behaviour
About 8% of strain can be recovered by unloading and heating. Strain above the limiting value will remain as a permanent plastic deformation. The operating temperature for shape memory devices must not move significantly away from the transformation range, or else the shape memory characteristics may be altered. A NiTi shape memory must be deformed at a temperature below As. Moreover, the deformation limit determined by distinctive design (sharp angles, etc.) and the intrinsic strain tolerance of NiTi material must not be disregarded either [Otsuka et al., 1998].
2.6. Mechanical Properties of NiTi
Generally, there are two basic mechanical demands for the material and design of the mechanisms. Service stresses must be safely below the yield strength of the material, and in cyclic loads the service stress must be kept below the fatigue limit.
The mechanical properties of NiTi depend on its phase state at a certain temperature [Buehler et al., 1967] (Fig. 3). The common mechanical properties of martensitic and austenitic NiTi are presented in Table 1. NiTi has an ability to be highly damping and vibration attenuating below As. For example, when a martensitic NiTi ball is dropped from a constant height, it bounces only slightly over half the height reached by a similar ball dropped above the Af temperature. The low elastic modulus of NiTi might provide benefits in specific applications. NiTi has uniquely high fatigue and ductile properties, which are also related to its martensitic transformation. NiTi is a non-magnetic alloy. Electrical resistance [Mihálcz, 1998] and acoustic damping also change when the temperature changes.
Table 1.
Selected mechanical properties of NiTi
|
|
Austenite |
Martensite |
|
Ultimate tensile strength (MPa) |
800 – 1500 |
103 - 1100 |
|
Tensile yield strength (MPa) |
100 – 800 |
50 - 300 |
|
Modulus of elasticity (GPa) |
70 – 110 |
21 - 69 |
|
Elongation at failure (%) |
1 – 20 |
Up to 60 |
2.7. Effects of Alloy Composition
It is feasible to vary the critical transition temperatures either by small variations of the Ti-Ni composition or by substituting metallic cobalt for nickel. Lowering of Af is possible by adding nickel. If nickel is added above 55.6%, a stable second phase (TiNi3) forms and the NiTi properties are lost. To avoid this problem, the cobalt substitution can be used to lower the transition temperature. The properties of NiTi can also be greatly modified by mechanical working and through heat treatment (time and temperature) [Buehler et al., 1967].
2.8. Fabrication
Solid NiTi alloys are manufactured by a double vacuum melting process to ensure the quality, purity and properties of the material. After the formation of raw material, the alloy is vacuum induction melted (1400°C). After the initial melting, the alloy transition temperature must be controlled due to the sensitivity of the transition temperature to small changes in the alloy chemistry. This is followed by vacuum arc remelting to improve the chemistry, homogeneity and structure of the alloy. Double-melted ingots can be hot-worked (800°C) and cold-worked to a wide range of product sizes and shapes.
Porous NiTi can be made by sintering or using self-propagating high temperature synthesis, also called ignition synthesis. The possibility to make composite SMA products (combination with polymers) is under investigation.
2.9. Programming
The use of the one-way shape memory or superelastic property of NiTi for a specific application requires a piece of NiTi to be molded into the required shape. The characteristic heat treatment is then done to set the specimen to its final shape. The heat treatment methods used to set shapes in both the shape memory and the superelastic forms of NiTi are similar. Adequate heat treatment parameters (temperature and suitable time) are needed to set the shape and the properties of the item [Otsuka et al., 1998]. They must usually be determined experimentally for the requirements of each desired part. Rapid cooling of some kind is preferred, such as water quenching or rapid air-cooling.
Shape memory effect (SME) training or stress-induced martensite (SIM) training can make the two-way shape memory training procedure. In SME training, the specimen is cooled below Mf and bent to the desired shape. It is then heated to a temperature above Af and allowed freely to take its austenite shape. The procedure is repeated 20-30 times, which completes the training. The sample now assumes its programmed shape upon cooling under Mf and to another shape when heated above Af .
In SIM training, the specimen is bent just above Ms to produce the preferred variants of stress-induced martensite and then cooled below the Mf temperature. Upon subsequent heating above the Af temperature, the specimen takes its original austenitic shape. This procedure is repeated 20-30 times.
3. The Model
The SMA is used in wire form and is activated electrically (with current or supply source). The design of electrically activated SMA actuator requires the calculation of the mechanical response of the SMA element, as well as an estimation of actuation times.
The mechanical analysis of SMA actuator is based on a planar version of the non-linear phenomenological model. The envelope of the thermo-mechanical for a given SMA is shown in Fig 5, which is delimited by three loading planes (elastic austenite, transformation loading and elastic martensite). This envelope is built from a set of stress-strain isothermal curves.
Figure 5. The linearized material model.
An example of such a curve in the superelastic domain is given in Fig 6. The linear dependence of the characteristic transformation stresses versus temperature is illustrated in Fig 7.
|

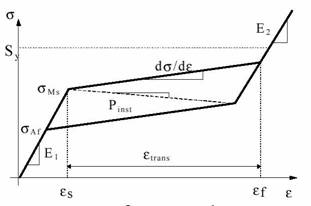

Figure 6. Bilinear approximation of a superelastic curve. |

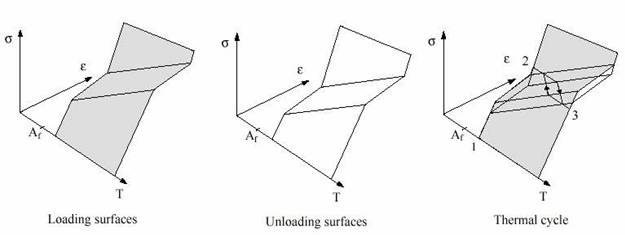

Figure 7. Approximation of the state diagram. |
The transformation can be induced thermally or mechanically. For example the sequence starts by creating 100% stress-induced martensite in the wire (trajectory 1-2 in Figures 5 and 7). Then the complete martensite-austenite transformation is realized by heating the wire with electric current. After turning off the electric current, the SMA wire is cooled by natural convection and the reverse transformation occurs (trajectory 3-2 in Figures 5 and 7). In conclusion temperature and stress variation can be imposed in a sequential way in order to model complex super-thermoelastic cycles.
The continuummechanical model is based on the Tanaka’s constitutive equation [Tanaka, 1991; Brinson, 1996]:
(1)
where s is the stress in the wire, e is the strain, T is the temperature, E is the Young’s modulus of the material, Q is the thermal coefficient of expansion, x is the martensitic fraction in material, and W is the transformation tensor.
The
transformation tensor must be expressed as:
(2)
The
modulus of the material has been taken in practice to be calculated by
a rule
of mixture values:
(3)
where eL is the maximum residual strain for the given SMA material. The elongation e is a function of s, x and T. The martensite fraction x is a memory term, and depends on the current loading, the temperature and on the previous martensite fraction [Liang, 1993]. Many authors proposed a mathematical expression for martensite fraction. It was used one proposed by Liang:
(4)
where aA, aM, bA, bM are material constants.
The
thermal model describes the current temperature of the wire, which
depends on
the convection heat coefficient (the heat radiation and the conduction
is
neglected). The heat balance is:
(5)
The temperature of the wire was determined with the following equation:
(6)
where Fo is the Fourier number, Th is the Thring number, Bi is the Biot number, r is the emission constant, and e represents the strain of the wire.
The
actuator’s time constant is:
(7)
where c represents the heat capacity, r is the medium density of SMA, c represents the geometrical factor of cross section.
The transformation temperatures (Ms, Mf, As, Af) depend on the stress in the wire. This dependence rule is calculated with the following equation (see Fig 7):
,
where k = 9…11 [N/mm2K0]
(8)

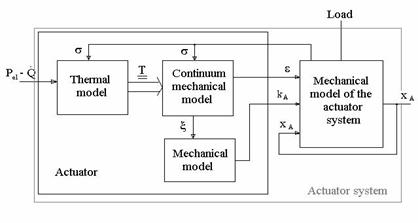

Figure 8. The complete model diagram
4. The Control of SMA Actuator
The dynamic of the actuator differs in every point of the state (martensitic volume fraction x, temperature T, mechanical stress s). An essential failure of the actuator system is the distinctive hysteresis of the martensite volume fraction x over T and s. If the actuator leaves the outer hysteresis loop (HL) it joins into the first order reverse path (RP). If the actuator changes its direction of motion once more, the order of the RP increases. If the actuator is heated, for example, until it joins an RP of lower order, it adopts the order of this path.
A precise examination of the parameter model shows that a differentiation in outer HL, first order RP and higher order RP is sufficient [Pritschow, 1998]. The eight identification points are sufficient to find out the order of the RP, on which the actuator is situated and the actuator moves. The actuator state is identified if one of the eight points (see Figure 9.) is recognised. The logical condition for the detection of the eight points is shown in Table 2.

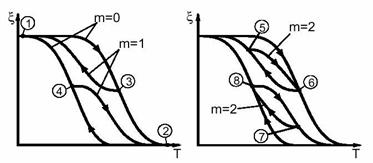

Figure 9. The identification points [Pritschow, 1998].
Table 2.
The
logical condition of the eight points [Pritschow,
1998].
|
|
|
m |
|
Direction |
Value of x |
Description |
|
1 |
£ 0 |
-- |
-- |
-- |
x = 1 |
Actuator on HL, heating |
|
2 |
³ 0 |
-- |
-- |
-- |
x = 0 |
Actuator on HL, cooling |
|
3 |
³ 0 |
= 1 |
x < xd |
h |
-- |
Actuator leaves HL, cooling |
|
4 |
£ 0 |
= 1 |
x > xd |
c |
-- |
Actuator leaves HL, heating |
|
5 |
£ 0 |
³ 2 |
x > xd |
c |
-- |
Actuator leaves RP (m-1), heating |
|
6 |
< 0 |
³ 2 |
x < xd |
-- |
-- |
Actuator on RP m and joins RP (m-2) or HL, heating |
|
7 |
³ 0 |
³ 2 |
x < xd |
h |
-- |
Actuator leaves RP (m-1), cooling |
|
8 |
> 0 |
³ 2 |
x > xd |
-- |
-- |
Actuator on RP m and joins RP (m-2) or HL, cooling |
where
represents
the elongation or contraction of the actuator (direction of motion), m
is the order of the actual RP,
is
a comparison between
detected xd and
actual x, h and c means the heating or
the
cooling process.
The transfer function of the closed loop:
(9)
The error can be evaluated by the integrated square error (ISE). After the minimalization of ISE the optimal control parameters can be found: TI corresponds to the time constant TA of the actuator and the amplification factor Ac of the controller is equivalent to the inverse gain parameter of the plant Ap. The signal flow diagram (Figure 10.) shows the structure of the controlled loop and the adaptive controller.

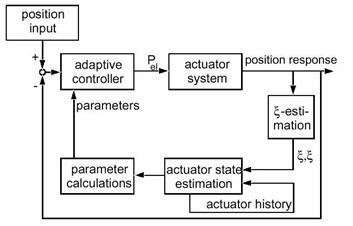

Figure 10. The signal flow diagram
5. Conclusion
This paper presents a complete design model for linear SMA actuator based on the mixture of three models: thermal, mechanical and continuummechanical model. In the paper an adaptive control system is also presented. For the simulation the visual programming language LabView was used.
The disadvantage of the adaptive controller can be described by the inaccurate approximations (the actuator systems are modelled as PT1 element) in the calculation of the optimal control parameters. Applying more exact methods the accuracy will increase.
The actuator state estimation is problematic, because the martensite fraction x is not measurable; it is available only by approximation.
Acknowledgements
This work was carried out at the Department of Precision Engineering and Optics, Technical University of Budapest. The author wishes to thank the National Technical Research Found (OTKA: F 026127) for the financial support.
